濟南電纜橋架鋪設踩坑，層數、根數、限制，規范不看必返工

　　The installation of cable trays in Jinan is limited by the number of layers, pieces, and plot ratio, and does not require rework due to regulations

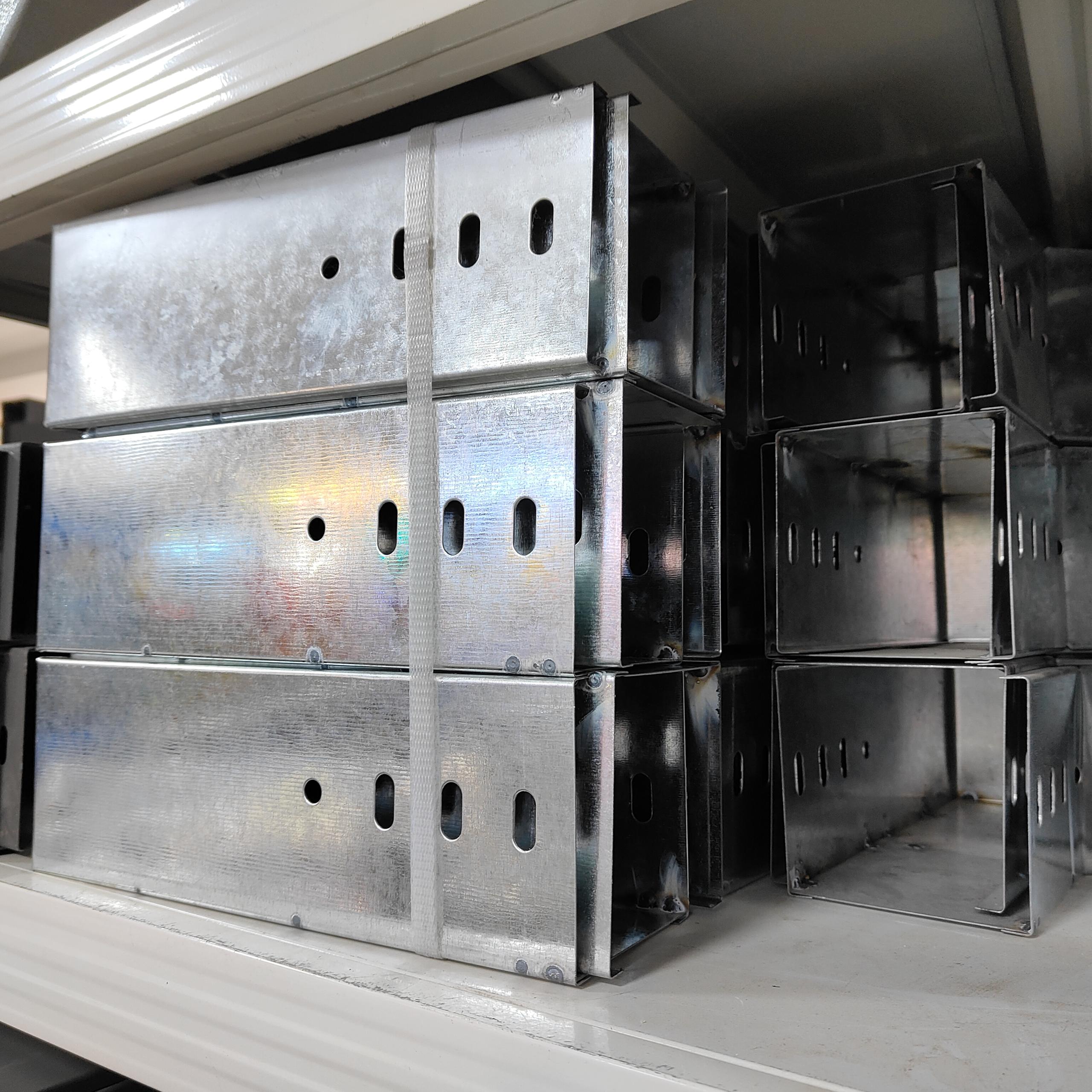

　　濟南電纜橋架作為建筑、工業、市政工程中電力傳輸、信號布線的核心載體，其電纜鋪設的規范性直接影響輸電、散熱效果及后期運維效率。但在實際施工中，不少從業者對“橋架鋪設層數、、電纜根數”的限制認知模糊，盲目施工導致驗收不合格、返工頻發。據濟南建筑施工驗收數據顯示，58%的電纜橋架施工返工，源于鋪設不符合規范，其中39%是層數超標、27%是或根數違規，每返工成本增加6-10萬元。今天，結合多份設計與施工驗收規范，解析濟南電纜橋架鋪設的核心限制要求，幫從業者避開誤區、規范施工，適配百度收錄需求，兼顧性與實用性。

　　As the core carrier of power transmission and signal wiring in construction, industrial, and municipal engineering, the standardization of cable laying in Jinan directly affects transmission safety, heat dissipation effect, and later operation and maintenance efficiency. However, in actual construction, many practitioners have a vague understanding of the limitations on the number of layers, plot ratio, and cable count of bridge laying, resulting in blind construction that leads to unqualified acceptance and frequent rework. According to the construction acceptance data of Jinan, 58% of cable tray construction rework is due to non compliant laying, of which 39% is due to exceeding the standard number of floors, 27% is due to violations of plot ratio or number of cables, and the rework cost per kilometer increases by 60000 to 100000 yuan. Today, combining multiple design and construction acceptance standards, we comprehensively analyze the core limiting requirements for laying cable trays in Jinan, helping practitioners avoid misunderstandings, standardize construction, adapt to Baidu indexing needs, and balance professionalism and practicality.

　　電纜橋架鋪設的層數、根數及限制，核心依據是各類規范，不同規范針對不同場景給出了明確要求，核心目的是減少電纜多層敷設導致的渦流增加，保障良好散熱，終實現輸電線路穩定運行，這也是濟南各類電纜橋架工程驗收的必查核心要點。

　　The limitations on the number of layers, pieces, and plot ratio of cable tray laying are based on various national regulations, which provide clear requirements for different scenarios. The core purpose is to reduce the increase in eddy currents caused by multi-layer cable laying, ensure good heat dissipation, and ultimately achieve safe and stable operation of transmission lines. This is also a necessary key point for the acceptance of various cable tray projects in Jinan.

　　看《低壓配電設計規范》（GB 50054），這是濟南電纜橋架鋪設的核心遵循規范之一。其明確要求，電纜在托盤和梯架內敷設時，電力電纜的截面積占比（）不得超過40%，控制電纜不得超過橫截面積的50%。這一要求可有效避免電纜過度密集，確保散熱空間充足，減少因散熱不良導致的電纜老化、短路等隱患，也是濟南工業廠房、高層建筑橋架鋪設中常用的標準。

　　Firstly, let's take a look at the "Code for Design of Low Voltage Distribution" (GB 50054), which is one of the core guidelines for laying cable trays in Jinan. It is explicitly required that when cables are laid in trays and ladders, the cross-sectional area ratio (volume ratio) of power cables shall not exceed 40%, and the cross-sectional area ratio of control cables shall not exceed 50%. This requirement can effectively avoid excessive cable density, ensure sufficient heat dissipation space, and reduce hidden dangers such as cable aging and short circuits caused by poor heat dissipation. It is also the most commonly used floor area ratio standard in the installation of cable trays in industrial plants and high-rise buildings in Jinan.

　　再看《民用電氣設計標準》（GB 51348），該規范在基礎上，進一步補充了根數限制，更貼合濟南民用建筑、市政工程的橋架鋪設需求。規范明確，電纜在橋架與托盤內敷設時，同樣不得超過40%；而在槽盒內敷設時，除了不超過40%，電力電纜根數還不宜超過30根。同時規定，控制與信號線路作為非載流導體，其總截面積不應超過槽盒內截面積的50%，雙重限制確保民用場景下電纜鋪設的性與合理性。

　　Looking at the "Civil Electrical Design Standards" (GB 51348) again, this standard further supplements the limit on the number of cables based on the plot ratio, which is more in line with the cable tray laying needs of civil buildings and municipal engineering in Jinan. The specification specifies that when cables are laid in cable trays and pallets, the volume ratio shall not exceed 40%; When laying in the trough box, in addition to a plot ratio not exceeding 40%, the number of power cables should not exceed 30. At the same time, it is stipulated that the total cross-sectional area of control and signal lines, as non current carrying conductors, should not exceed 50% of the cross-sectional area inside the cable tray, ensuring the safety and rationality of cable laying in civilian scenarios.

　　《電力工程電纜設計標準》則側不同，雖未對鋪設層數、和根數作出具體數值限制，但對不同層數電纜的載流量矯正提出了明確要求。規范指出，當無間距配置多層并列電纜時，需對電纜載流量進行矯正；尤其當水平狀并列電纜根數不少于7根時，載流量矯正更為關鍵，這一點在濟南大型工業項目、高壓輸電場景的橋架鋪設中需注意，避免因載流量不達標引發事故。

　　The "Design Standards for Power Engineering Cables" have different focuses. Although they do not impose specific numerical restrictions on the number of laying layers, plot ratio, and number of cables, they provide clear requirements for correcting the current carrying capacity of cables with different layers. The standard states that when configuring multi-layer parallel cables without distance, the cable current carrying capacity needs to be corrected; Especially when the number of horizontal parallel cables is not less than 7, the correction of current carrying capacity is more critical. This should be emphasized in the bridge laying of large-scale industrial projects and high-voltage transmission scenarios in Jinan to avoid safety accidents caused by inadequate current carrying capacity.

　　《安裝電纜線路施工及驗收標準》則針對鋪設層數給出了具體限制，直接明確了濟南電纜橋架施工的實操邊界。其中規定，控制電纜在普通支架上敷設時，不宜超過2層；在條件允許的情況下，敷設層數不宜超過3層；交流三相電力電纜在普通支吊架上敷設時，不宜超過1層，在橋架上敷設時，不宜超過2層。這一要求可有效避免多層電纜疊加導致的渦流過大、散熱不暢問題，是濟南電纜橋架施工中易忽視也易違規的要點。

　　The "Construction and Acceptance Standards for Installing Cable Lines" provide specific restrictions on the number of laying layers, directly clarifying the practical boundaries of cable tray construction in Jinan. It is stipulated that when laying control cables on ordinary supports, the number of layers should not exceed 2; If conditions permit, the number of laying layers should not exceed 3; When laying AC three-phase power cables on ordinary supports and hangers, it should not exceed one layer, and when laying on cable trays, it should not exceed two layers. This requirement can effectively avoid the problems of excessive eddy currents and poor heat dissipation caused by the stacking of multiple layers of cables, which is the most easily overlooked and violated key point in the construction of cable trays in Jinan.

　　據濟南電力工程協會調研顯示，嚴格遵循規范鋪設的電纜橋架，電纜老化速度可降低60%以上，短路、過熱引發的事故發生率可降低92%，同時能提升后期運維效率，減少維護成本。當前，濟南電纜橋架施工對規范的要求不斷提升，層數、根數、的合規性已成為工程驗收的核心考核指標，施工單位需結合工程場景，對照對應規范精準執行。

　　According to research conducted by the Jinan Electric Power Engineering Association, cable trays laid strictly in accordance with regulations can reduce cable aging speed by more than 60%, and the incidence of safety accidents caused by short circuits and overheating can be reduced by 92%. At the same time, it can improve later operation and maintenance efficiency and reduce maintenance costs. At present, the construction of cable trays in Jinan has continuously raised the requirements for standards, and the compliance of the number of layers, roots, and plot ratio has become the core assessment indicators for project acceptance. Construction units need to combine the project scenario and accurately implement the corresponding standards.

　　綜上，濟南電纜橋架鋪設并非“越多越好、越密越好”，層數、根數、均有明確規范限制，需嚴格遵循四大核心規范，結合民用、工業等不同場景靈活適配。掌握上述規范要點，避開常見施工誤區，既能確保工程驗收一次通過，又能保障輸電，減少返工成本。對于濟南電纜橋架施工從業者而言，規范鋪設不僅是符合驗收標準的要求，更是守護工程、提升施工質量的核心責任。

　　In summary, the laying of cable trays in Jinan is not necessarily "more is better, denser is better". There are clear regulatory restrictions on the number of layers, roots, and plot ratio, and strict adherence to the four core specifications is required to flexibly adapt to different scenarios such as civil and industrial use. Mastering the key points of the above specifications and avoiding common construction misconceptions can ensure that the project is accepted in one go, while also ensuring power transmission safety and reducing rework costs. For practitioners in the construction of cable trays in Jinan, standardized laying is not only a requirement to meet acceptance standards, but also a core responsibility to safeguard project safety and improve construction quality.
